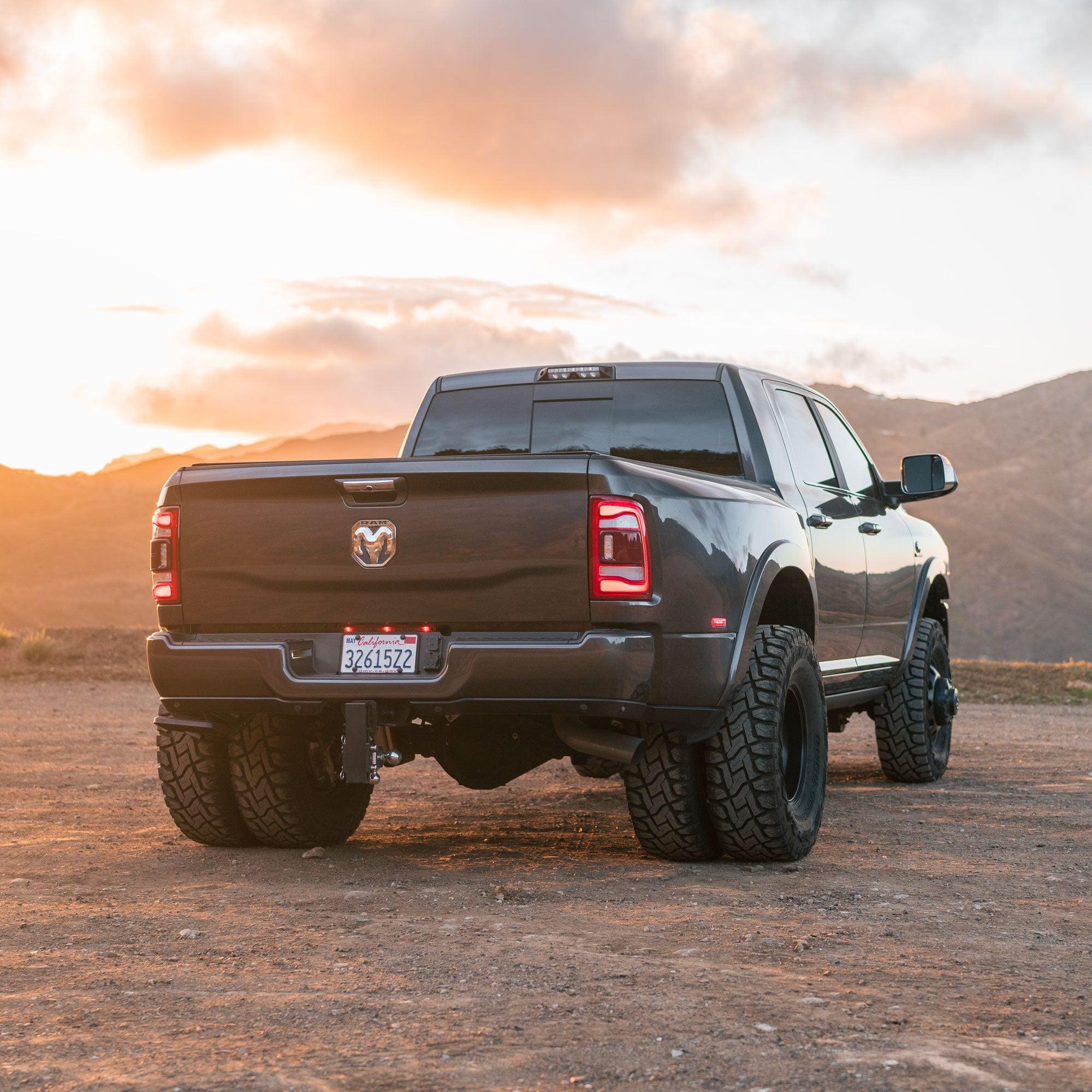

This system is the best and only true way to dramatically improve the harsh ride of a 2013+ Ram 3500 auto leveling air suspension 3500 truck without sacrificing payload or towing capability. Built from the ground up in the USA, this system will transform what your Ram 3500 truck is capable of.

With Carli's Ram 3500 air assist Pintop 2.5 system, your truck will sit 3”-3.5” higher in the front (cab configuration dependent) with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. The new 3500, air assist Rams tip the scales with a maximum payload exceeding 6,000lbs in most configurations. Carli went back to the drawing board with Deaver Spring and designed a progressive leaf spring pack that lifts the rear 2.5” while drastically increasing unloaded ride quality and maintaining the truck’s capacity without further stressing the factory air system.

With this leaf pack in place, we went to work on the factory air system. After several revisions, we found the perfect spacer height to achieve full travel of the new leaf springs with the factory bag and built a relocation bracket for the rear height sensor to ensure proper operation of the load leveling system. As the front radius arm drop brackets interfere with the factory air tank, we include a custom bracket and airline to relocate the tank to the spare tire area. The spare tire cavity on these trucks will not accept any larger than a stock size spare; given the recommended 35”-37” tires with this system, it was the logical choice with the nullification of the factory spare. Another perk, it alleviates the Amp Research Step and air tank interference

Base Kit:

The Base system for the 2013+ 3500 Ram Air Assist is identical to the leaf spring with the exception of the tuning in the shocks; this is specific to the air-assist trucks.

Because the shocks are included as part of the base system, a new system was created as follows:
CS-DPT25-13-D-ALAS Dodge Leveling Pintop 2.5 System

Auto-Leveling Air Suspension, BASE
The Above includes ALL the following:
CS-DFBD-1 Dodge Front Bump Drop, 1"
CS-DLRC-14-D 3" Lift, Linear Rate Coil Springs
CS-DPRB-14 Dodge Track Bar, 2014+
CS-DRAD-14 Dodge Radius Arm Drops, 2014+
AS-DPT25SPKG-13-D-ALAS King 2.5" Pintop Shock Package
Auto-Leveling Air Suspension Specific
CS-DRM-14-2.5 Ram Reservoir Mount, 2014+ 2.5"

Rear Leaf Springs:
The Rear Leaf Springs are ONLY sold as a complete Package and will include all necessary
components to lift the rear and relocate the airbags, air-tank and ride-height sensor.
We Will Not be selling the relocation brackets/parts outside the leaf spring kit.
CS-DFSP-13-D-ALAS Full Progressive Spring Pack.

2" Lift - Auto-Leveling Air Suspension
The Above includes ALL the following:

(Qty. 2) AP-DFSP-13-ALAS Dodge Full Spring, 2013 3500
Auto-Leveling Air Suspension Specific

CS-DUBK-03-D Dodge U-Bolt Kit Diesel
CS-DALAS-13-BLOCK Fabricated Airbag Spacer
CS-DALAS-13-TANKBRKT Relocation Bracket for Factory Air-Tank

Spare Tire Location
CS-DALAS-13-ARMDROP Relocation Bracket

Factory Rear Ride Height Sensor
AP-PCLIP Clamp, 1/2", E-Brake Retainer

This system fits Dodge Ram 3500 4x4 trucks from 2013 to current with factory rear air ride ONLY.

Front Lift	Rear Lift	Front Travel	Rear Travel	Shock Diameter	Tire Fitment
3.25″ – 3.5″	2″	9.6″	11″	2.5″	37″ x 12.5″
